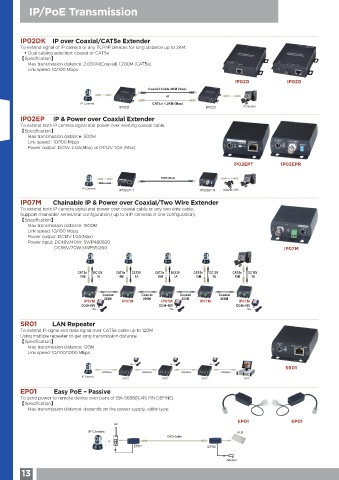

IP/PoE Transmission

IP02DK IP over Coaxial/CAT5e Extender
To extend signal of IP camera or any TCP/IP devices for long distance up to 2KM.
• Dual cabling selection: coaxial or CAT5e
【Specification】
Max transmission distance: 2,000M(Coaxial) 1,200M (CAT5e)
Link speed: 10/100 Mbps
IP02D IP02D
Coaxial Cable 2KM (Max)
or
IP Camera CAT5.e 1.2KM (Max)
IP02D IP02D Computer
IP02EP IP & Power over Coaxial Extender
To extend both IP camera signal and power over existing coaxial cable.
【Specification】
Max transmission distance: 500M
Link speed : 10/100 Mbps
Power output: DC5V 2.0A(Max) or DC12V 1.0A (Max)

IP02EPT IP02EPR

500M (Max)
IP Camera IP02EP-T IP02EP-R Adapter 48V

IP07M Chainable IP & Power over Coaxial/Two Wire Extender
To extend both IP camera signal and power over coaxial cable or any two wire cable.
Support chainable/ series/star configuration.( up to 4 IP cameras in one configuration).
【Specification】
Max transmission distance: 1500M
Link speed: 10/100 Mbps
Power output: DC12V 1.0A(Max)
Power input: DC48V/40W: SWP480830
DC56V/70W:SWP551260 IP07M

CAT.5e DC12V CAT.5e DC12V CAT.5e DC12V CAT.5e DC12V CAT.5e DC12V
10M 1A 10M 1A 10M 1A 10M 1A 10M 1A

Coaxial Coaxial Coaxial Coaxial
200M 200M 200M 200M
IP07M IP07M IP07M IP07M IP07M
DC48~56V DC48~56V DC48~56V

SR01 LAN Repeater
To extend IP signal and data signal over CAT5e cable up to 120M
Using multiple repeater to get long transmission distance.
【Specification】
Max transmission distance: 120M
Link speed: 10/100/1000 Mbps

SR01
120M(Max) 120M(Max) 120M(Max) 120M(Max)
IP Camera
SR01 SR01 SR01 NVR
EP01 Easy PoE – Passive
To send power to remote device over pairs of EIA-568B(RJ45 PIN DEFINE).
【Specification】
Max transmission distance: depends on the power supply, cable type.

EP01 EP01
AP
IP Camera HUB
CAT5 Cable
or
EP01 EP01

Adapter
