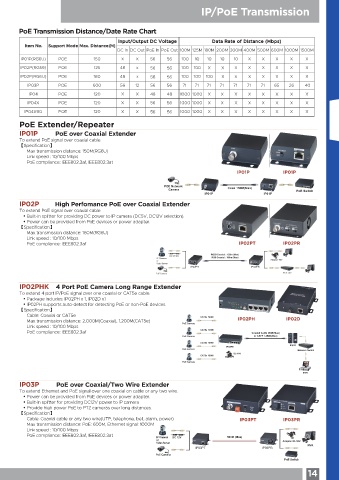

IP/PoE Transmission

PoE Transmission Distance/Date Rate Chart
Input/Output DC Voltage Data Rate of Distance (Mbps)
Item No. Support Mode Max. Distance (M)
DC In DC Out PoE In PoE Out 100M 125M 180M 200M 300M 400M 500M 600M 1000M 1500M
IP01P(RG6U) POE 150 X X 56 56 100 10 10 10 10 X X X X X
IP02P(RG59) POE 125 48 x 56 56 100 100 X X X X X X X X
IP02P(RG6U) POE 180 48 x 56 56 100 100 100 X X X X X X X
IP03P POE 600 56 12 56 56 71 71 71 71 71 71 71 65 26 40
IP04 POE 120 X X 48 48 1000 1000 X X X X X X X X
IP04X POE 120 X X 56 56 1000 1000 X X X X X X X X
IP04X90 POE 120 X X 56 56 1000 1000 X X X X X X X X
PoE Extender/Repeater
IP01P PoE over Coaxial Extender
To extend PoE signal over coaxial cable.
【Specification】
Max transmission distance: 150M(RG6U)
Link speed : 10/100 Mbps
PoE compliance: IEEE802.3af, IEEE802.3at
IP01P IP01P

POE Network
Camera Coax 150M(Max) PoE Switch
IP01P IP01P
IP02P High Perfomance PoE over Coaxial Extender
To extend PoE signal over coaxial cable.
• Built-in splitter for providing DC power to IP camera (DC5V, DC12V selection).
• Power can be provided from PoE devices or power adapter.
【Specification】
Max transmission distance: 180M(RG6U)
Link speed : 10/100 Mbps
PoE compliance: IEEE802.3af IP02PT IP02PR

DC 5V/12V RG59 Coaxial : 125m (Max)
IP Camera RG6 Coaxial : 180m (Max)
or Adapter 48V
Video Server
IP02PT IP02PR
PoE Camera PoE 48V
IP02PHK 4 Port PoE Camera Long Range Extender
To extend 4 port IP/PoE signal over one coaxial or CAT5e cable.
• Package includes: IP02PH x 1, IP02D x1
• IP02PH supports auto-detect for detecting PoE or non-PoE devices
【Specification】
Cable: Coaxial or CAT5e CAT5e 100M
Max transmission distance: 2,000M(Coaxial), 1,200M(CAT5e) IP02PH IP02D
Link speed : 10/100 Mbps PoE Camera
PoE compliance: IEEE802.3af CAT5e 100M Coaxial Cable 2KM (Max)
PoE Camera or CAT5 1.2KM (Max)
CAT5e 100M
IP02PH IP02D
PoE Camera Network Switch
DC 48V
CAT5e 100M
PoE Camera
NVR

IP03P PoE over Coaxial/Two Wire Extender
To extend Ethernet and PoE signal over one coaxial on cable or any two wire.
• Power can be provided from PoE devices or power adapter.
• Built-in splitter for providing DC12V power to IP camera
• Provide high power PoE to PTZ cameras over long distances.
【Specification】
Cable: Coaxial cable or any two wire(UTP, telephone, bell, alarm, power) IP03PT IP03PR
Max transmission distance: PoE: 600M, Ethernet signal: 1000M
Link speed : 10/100 Mbps
PoE compliance: IEEE802.3af, IEEE802.3at IP Camera DC 12V 500M (Max)
or
Video Server Adapter 48~56V
NVR
IP03PT IP03PR
PoE Camera
PoE Switch
