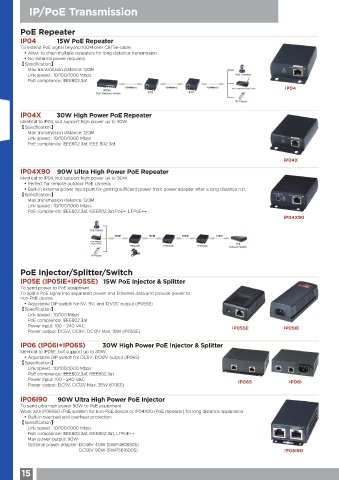

Page 18 -

IP/PoE Transmission

PoE Repeater
IP04 15W PoE Repeater
To extend PoE signal beyond 100M over CAT5e cable.
• Allow to chain multiple repeaters for long distance transmission.
• No external power required.
【Specification】
Max transmission distance: 120M
Link speed : 10/100/1000 Mbps PoE Camera
PoE compliance: IEEE802.3af
120M(Max) 120M(Max) 120M(Max) IP04
IP05H POE Wireless Access Polnt
PoE Network Switch IP04 IP04
IP Phone
IP04X 30W High Power PoE Repeater
Identical to IP04, but support high power up to 30W.
【Specification】
Max transmission distance: 120M
Link speed : 10/100/1000 Mbps
PoE compliance: IEEE802.3af, IEEE 802.3at

IP04X

IP04X90 90W Ultra High Power PoE Repeater
Identical to IP04, but support high power up to 90W.
• Perfect for remote outdoor PoE camera.
• Built-in external power input port for getting sufficient power from power adapter after a long distance run.
【Specification】
Max transmission distance: 120M
Link speed : 10/100/1000 Mbps
PoE compliance: IEEE802.3af, IEEE802.3at,PoE+, LTPoE++
IP04X90

PoE Camera
100M 100M 100M 100M
POE Wireless
Access Polnt PoE
IP04X90 IP04X90 IP04X90 Network Switch
IP Phone

PoE Injector/Splitter/Switch
IP05E (IP05IE+IP05SE) 15W PoE Injector & Splitter
To send power to PoE equipment
To split a PoE signal into separated power and Ethernet data and provide power to
non-PoE device
• Adjustable DIP switch for 5V, 9V, and 12VDC output (IP05SE)
【Specification】
Link speed : 10/100 Mbps
PoE compliance: IEEE802.3af
Power input: 100 ~ 240 VAC IP05SE IP05IE
Power output: DC5V, DC9V, DC12V Max. 19W (IP05SE)

IP06 (IP06I+IP06S) 30W High Power PoE Injector & Splitter
Identical to IP05E, but support up to 30W
• Adjustable DIP switch for DC5V, DC12V output (IP06S)
【Specification】
Link speed : 10/100/1000 Mbps
PoE compliance: IEEE802.3af, IEEE802.3at
Power input: 100 ~ 240 VAC IP06S IP06I
Power output: DC5V, DC12V Max. 25W (IP06S)

IP06I90 90W Ultra High Power PoE Injector
To send ultra high power 90W to PoE equipment
Work with IP06S60 (PoE splitter) for non-PoE device or IP04X90 (PoE repeater) for long distance application
• Built-in overload and overheat protection.
【Specification】
Link speed : 10/100/1000 Mbps
PoE compliance: IEEE802.3af, IEEE802.3at, LTPoE++
Max power output: 90W
Optional power adapter: DC48V 40W (SWP480830S)
DC56V 90W (SWP561600S) IP06I90

15
