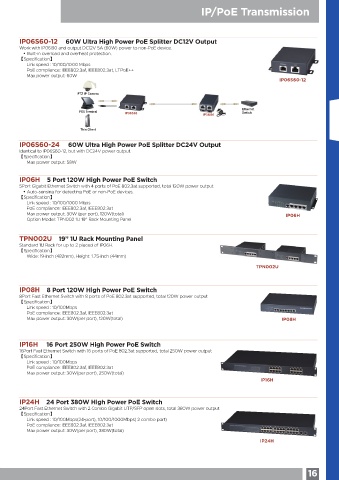

Page 19 -

IP/PoE Transmission

IP06S60-12 60W Ultra High Power PoE Splitter DC12V Output
Work with IP06I90 and output DC12V 5A (60W) power to non-PoE device.
• Built-in overload and overheat protection.
【Specification】
Link speed : 10/100/1000 Mbps
PoE compliance: IEEE802.3af, IEEE802.3at, LTPoE++
Max power output: 60W
IP06S60-12

PTZ IP Camera

Ethernet
POS Terminal IP06S60 IP06I90 Switch

Thin Client

IP06S60-24 60W Ultra High Power PoE Splitter DC24V Output
Identical to IP06S60-12, but with DC24V power output.
【Specification】
Max power output: 58W

IP06H 5 Port 120W High Power PoE Switch
5Port Gigabit Ethernet Switch with 4 ports of PoE 802.3at supported, total 120W power output
• Auto-sensing for detecting PoE or non-PoE devices.
【Specification】
Link speed : 10/100/1000 Mbps
PoE compliance: IEEE802.3af, IEEE802.3at
Max power output: 30W (per port), 120W(total) IP06H
Option Model: TPN002 1U 19” Rack Mounting Panel

TPN002U 19” 1U Rack Mounting Panel
Standard 1U Rack for up to 2 pieced of IP06H.
【Specification】
Wide: 19-inch (482mm), Height: 1.75-inch (44mm)
TPN002U

IP08H 8 Port 120W High Power PoE Switch
8Port Fast Ethernet Switch with 8 ports of PoE 802.3at supported, total 120W power output
【Specification】
Link speed : 10/100Mbps
PoE compliance: IEEE802.3af, IEEE802.3at
Max power output: 30W(per port), 120W(total) IP08H

IP16H 16 Port 250W High Power PoE Switch
16Port Fast Ethernet Switch with 16 ports of PoE 802.3at supported, total 250W power output
【Specification】
Link speed : 10/100Mbps
PoE compliance: IEEE802.3af, IEEE802.3at
Max power output: 30W(per port), 250W(total)
IP16H

IP24H 24 Port 380W High Power PoE Switch
24Port Fast Ethernet Switch with 2 Combo Gigabit UTP/SFP open slots, total 380W power output
【Specification】
Link speed : 10/100Mbps(24-port), 10/100/1000Mbps( 2 combo port)
PoE compliance: IEEE802.3af, IEEE802.3at
Max power output: 30W(per port), 380W(total)
IP24H
