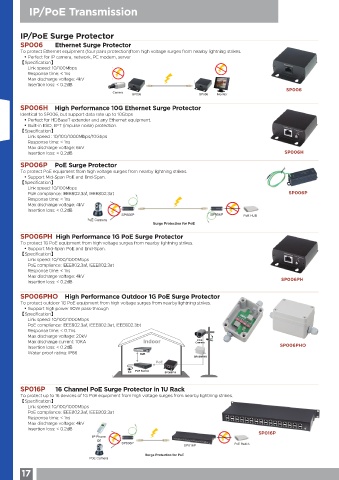

IP/PoE Transmission

IP/PoE Surge Protector
SP006 Ethernet Surge Protector
To protect Ethernet equipment (four pairs protection)from high voltage surges from nearby lightning strikes.
• Perfect for IP camera, network, PC modem, server
【Specification】
Link speed: 10/100Mbps
Response time: < 1ns
Max discharge voltage: 4kV
Insertion loss: < 0.2dB
SP006
Camera
SP006 SP006 Moniter
SP006H High Performance 10G Ethernet Surge Protector
Identical to SP006, but support data rate up to 10Gbps
• Perfect for HDBaseT extender and any Ethernet equipment.
• Built-in ESD, EFT (impulse noise) protection.
【Specification】
Link speed : 10/100/1000Mbps/10Gbps
Response time: < 1ns
Max discharge voltage: 6kV
Insertion loss: < 0.2dB SP006H
SP006P PoE Surge Protector
To protect PoE equipment from high voltage surges from nearby lightning strikes.
• Support Mid-Span PoE and End-Span.
【Specification】
Link speed: 10/100Mbps
PoE compliance: IEEE802.3af, IEEE802.3at SP006P
Response time: < 1ns
Max discharge voltage: 4kV
Insertion loss: < 0.2dB
SP006P SP006P PoE HUB
PoE Camera
Surge Protection for PoE
SP006PH High Performance 1G PoE Surge Protector
To protect 1G PoE equipment from high voltage surges from nearby lightning strikes.
• Support Mid-Span PoE and End-Span.
【Specification】
Link speed: 10/100/1000Mbps
PoE compliance: IEEE802.3af, IEEE802.3at
Response time: < 1ns
Max discharge voltage: 4kV
Insertion loss: < 0.2dB SP006PH

SP006PHO High Performance Outdoor 1G PoE Surge Protector
To protect outdoor 1G PoE equipment from high voltage surges from nearby lightning strikes.
• Support high power 90W pass- through
【Specification】
Link speed: 10/100/1000Mbps
PoE compliance: IEEE802.3af, IEEE802.3at, IEEE802.3bt
Response time: < 0.7ns
Max discharge voltage: 20kV
POE
Max discharge current: 10KA Indoor Camera
Insertion loss: < 0.2dB SP006PHO
Water proof rating: IP66 NVR
SP006PHO
PoE
AC PoE Switch SP006PH

SP016P 16 Channel PoE Surge Protector in 1U Rack
To protect up to 16 devices of 1G PoE equipment from high voltage surges from nearby lightning strikes.
【Specification】
Link speed: 10/100/1000Mbps
PoE compliance: IEEE802.3af, IEEE802.3at
Response time: < 1ns
Max discharge voltage: 4kV
Insertion loss: < 0.2dB
SP016P
IP Phone
or
SP006P PoE Switch
SP016P
Surge Protection for PoE
PoE Camera
