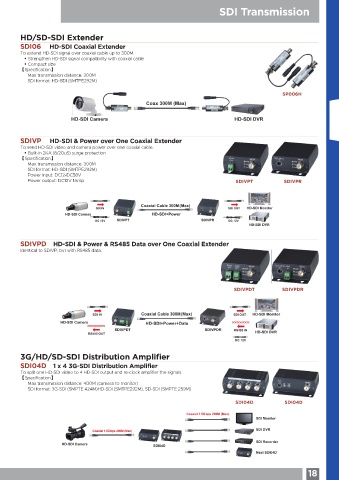

Page 21 -

SDI Transmission

HD/SD-SDI Extender
SDI06 HD-SDI Coaxial Extender
To extend HD-SDI signal over coaxial cable up to 300M.
• Strengthen HD-SDI signal compatibility with coaxial cable
• Compact size
【Specification】
Max transmission distance: 300M
SDI format: HD-SDI (SMTPE292M)

SP006H
Coax 300M (Max)

HD-SDI Camera HD-SDI DVR

SDIVP HD-SDI & Power over One Coaxial Extender
To send HD-SDI video and camera power over one coaxial cable.
• Built-in 2KA (8/20uS) surge protection
【Specification】
Max transmission distance: 300M
SDI format: HD-SDI (SMTPE292M)
Power Input: DC12-DC58V
Power output: DC12V 1Amp SDIVPT SDIVPR

Coaxial Cable 300M(Max)
SDI IN SDI OUT HD-SDI Monitor
HD-SDI Camera HD-SDI+Power
DC 12V SDIVPT SDIVPR DC 12V
HD-SDI DVR

SDIVPD HD-SDI & Power & RS485 Data over One Coaxial Extender
Identical to SDIVP, but with RS485 data.

SDIVPDT SDIVPDR

SDI IN Coaxial Cable 300M(Max) SDI OUT HD-SDI Monitor
HD-SDI Camera HD-SDI+Power+Data
SDIVPDT SDIVPDR RS485 IN
RS485 OUT HD-SDI DVR
DC 12V

3G/HD/SD-SDI Distribution Amplifier
SDI04D 1 x 4 3G-SDI Distribution Amplifier
To split one HD-SDI video to 4 HD-SDI output and re-clock amplifier the signals.
【Specification】
Max transmission distance: 400M (camera to monitor)
SDI format: 3G-SDI (SMPTE 424M)HD-SDI (SMTPE292M), SD-SDI (SMPTE 259M)

SDI04D SDI04D
Coaxial 1.5G bps 200M (Max)
SDI Monitor

Coaxial 1.5G bps 200M (Max) SDI DVR
SDI Recorder
HD-SDI Camera SDI04D
Next SDI04D

18
