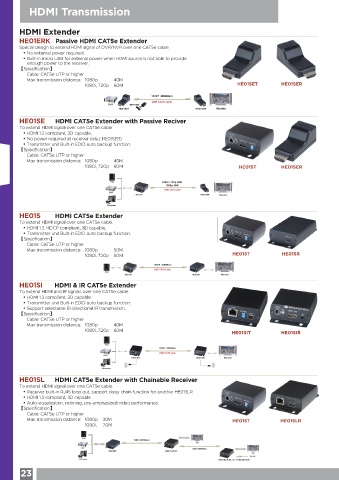

HDMI Transmission

HDMI Extender
HE01ERK Passive HDMI CAT5e Extender
Special design to extend HDMI signal of DVR/NVR over one CAT5e cable
• No external power required.
• Built-in micro USB for external power when HDMI source is not able to provide
enough power to the receiver.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: 1080p 40M
1080i, 720p 60M HE01SET HE01SER

1080P 40M(Max)
ONE CAT5 cable
DVR
HE01SET HE01SER Monitor
HE01SE HDMI CAT5e Extender with Passive Reciver
To extend HDMI signal over one CAT5e cable.
• HDMI 1.3 compliant, 3D capable.
• No power required at receiver side.( HE01SER)
• Transmitter unit Built-in EDID auto backup function.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: 1080p 40M
1080i, 720p 60M HE01ST HE01SER

PS3 1080i / 720p 60M
1080p 40M
ONE CAT5 cable
DVR
HE01SER Monitor
Computer
HE01S HDMI CAT5e Extender
To extend HDMI signal over one CAT5e cable.
• HDMI 1.3, HDCP compliant, 3D capable.
• Transmitter unit Built-in EDID auto backup function.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: 1080p 50M
1080i, 720p 60M HE01ST HE01SR

1080P 50M(Max)
ONE CAT5 cable
PS3
Monitor
HE01SI HDMI & IR CAT5e Extender
To extend HDMI and IR signals over one CAT5e cable.
• HDMI 1.3 compliant, 3D capable.
• Transmitter unit Built-in EDID auto backup function.
• Support selectable Bi-directional IR transmission.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: 1080p 40M
1080i, 720p 60M
HE01SIT HE01SIR
PS3
1080P 40M(Max)
ONE CAT5 cable
DVR
HE01SIT HE01SIR Monitor
Computer
HE01SL HDMI CAT5e Extender with Chainable Receiver
To extend HDMI signal over one CAT5e cable.
• Receiver built-in RJ45 loop out, support daisy chain function for another HE01SLR
• HDMI 1.3 compliant, 3D capable
• Auto-equalization, retiming, pre-emphasized video performance.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: 1080p 30M HE01ST HE01SLR
1080i, 70M

PS3
1080i 60M(Max)
TV
DVR 1080i 60M(Max)
HE01ST HE01SLR #1
TV
Computer HE01SLR #2 HE01SLR #n
