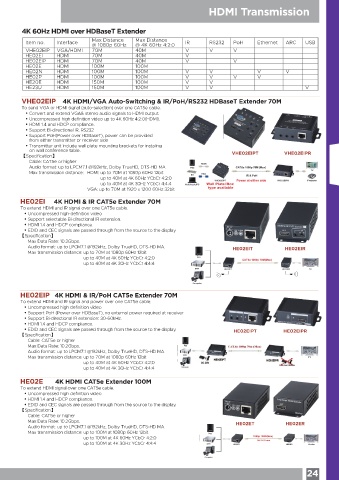

Page 27 -

HDMI Transmission

4K 60Hz HDMI over HDBaseT Extender

Item no. Interface Max Distance Max Distance IR RS232 PoH Ethernet ARC USB
@ 1080p 60Hz @ 4K 60Hz 4:2:0
VHE02EIP VGA/HDMI 70M 40M V V V
HE02EI HDMI 70M 40M V
HE02EIP HDMI 70M 40M V V
HE02E HDMI 100M 100M
HE02N HDMI 100M 100M V V V V
HE02P HDMI 100M 100M V V V V
HE20E HDMI 150M 100M V V
HE23U HDMI 150M 100M V V V

VHE02EIP 4K HDMI/VGA Auto-Switching & IR/PoH/RS232 HDBaseT Extender 70M
To send VGA or HDMI signal (auto-selection) over one CAT5e cable.
• Convert and extend VGA& stereo audio signals to HDMI output.
• Uncompressed high definition video up to 4K 60Hz 4:2:0(HDMI).
• HDMI 1.4 and HDCP compliance.
• Support Bi-directional IR, RS232
• Support PoH(Power over HDBaseT), power can be provided
from either transmitter or receiver side
• Transmitter unit include wall plate mounting brackets for instaling
on wall conference table.
【Specification】 VHE02EIPT VHE02EIPR
Cable: CAT5e or higher HDMI
Audio format: up to LPCM7.1 @192kHz, Dolby TrueHD, DTS-HD MA PS3 CAT.6a 1080p 70M (Max)
Max transmission distance: HDMI: up to 70M at 1080p 60Hz 12bit BD VGA TV
IR & PoH
up to 40M at 4K 60Hz YCbCr 4:2:0 VHE02EIPT Power at either side VHE02EIPR Projector
up to 40M at 4K 30Hz YCbCr 4:4:4 Note book/PC Wall Plate/Box
VGA: up to 70M at 1920 x 1200 60Hz 32bit type available
HE02EI 4K HDMI & IR CAT5e Extender 70M
To extend HDMI and IR signal over one CAT5e cable.
• Uncompressed high-definition video
• Support selectable Bi-directional IR extension.
• HDMI 1.4 and HDCP compliance.
• EDID and CEC signals are passed through from the source to the display.
【Specification】
Max Data Rate: 10.2Gbps.
Audio format: up to LPCM7.1 @192kHz, Dolby TrueHD, DTS-HD MA. HE02EIT HE02EIR
Max transmission distance: up to 70M at 1080p 60Hz 12bit
up to 40M at 4K 60Hz YCbCr 4:2:0 PS3 CAT6a 1080p 70M(Max)
up to 40M at 4K 30Hz YCbCr 4:4:4
DVR HE02EIT HE02EIR TV

Computer
HE02EIP 4K HDMI & IR/PoH CAT5e Extender 70M
To extend HDMI and IR signal and power over one CAT5e cable.
• Uncompressed high definition video
• Support PoH (Power over HDBaseT), no external power required at receiver
• Support Bi-directional IR extension: 30-60kHz.
• HDMI 1.4 and HDCP compliance.
• EDID and CEC signals are passed through from the source to the display. HE02EIPT HE02EIPR
【Specification】
Cable: CAT5e or higher
Max Data Rate: 10.2Gbps.
Audio format: up to LPCM7.1 @192kHz, Dolby TrueHD, DTS-HD MA.
Max transmission distance: up to 70M at 1080p 60Hz 12bit
up to 40M at 4K 60Hz YCbCr 4:2:0
up to 40M at 4K 30Hz YCbCr 4:4:4

HE02E 4K HDMI CAT5e Extender 100M
To extend HDMI signal over one CAT5e cable.
• Uncompressed high definition video
• HDMI 1.4 and HDCP compliance.
• EDID and CEC signals are passed through from the source to the display.
【Specification】
Cable: CAT5e or higher
Max Data Rate: 10.2Gbps. HE02ET HE02ER
Audio format: up to LPCM7.1 @192kHz, Dolby TrueHD, DTS-HD MA.
Max transmission distance: up to 100M at 1080p 60Hz 12bit PS3
up to 100M at 4K 60Hz YCbCr 4:2:0 1080p 100M(Max)
up to 100M at 4K 30Hz YCbCr 4:4:4 DVR HE02ET ONE CAT5 cable HE02ER Monitor

Computer
24
