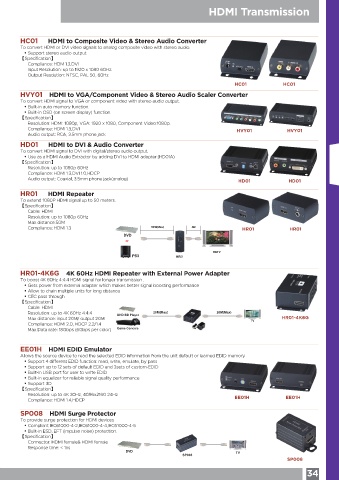

Page 37 -

HDMI Transmission

HC01 HDMI to Composite Video & Stereo Audio Converter
To convert HDMI or DVI video signals to analog composite video with stereo audio.
• Support stereo audio output.
【Specification】
Compliance: HDM 1.3,DVI
Input Resolution: up to 1920 x 1080 60Hz.
Output Resdution: NTSC, PAL 50, 60Hz
HC01 HC01
HVY01 HDMI to VGA/Component Video & Stereo Audio Scaler Converter
To convert HDMI signal to VGA or component video with stereo audio output.
• Built-in auto memory function.
• Built-in OSD (on screen display) function.
【Specification】
Resolution: HDMI: 1080p, VGA: 1920 x 1080, Component Video:1080p.
Compliance: HDMI 1.3,DVI HVY01 HVY01
Audio output: RCA, 3.5mm phone jack
HD01 HDMI to DVI & Audio Converter
To convert HDMI signal to DVI with digital/stereo audio output.
• Use as a HDMI Audio Extractor by adding DVI to HDMI adapter.(HD01A)
【Specification】
Resolution: up to 1080p 60Hz
Compliance: HDMI 1.3,DVI 1.0,HDCP
Audio output: Coaxial, 3.5mm phone jack(analog)
HD01 HD01

HR01 HDMI Repeater
To extend 1080P HDMI signal up to 50 meters.
【Specification】
Cable: HDMI
Resolution: up to 1080p 60Hz
Max distance:50M
Compliance: HDMI 1.3 HR01 HR01

HR01-4K6G 4K 60Hz HDMI Repeater with External Power Adapter
To boost 4K 60Hz 4:4:4 HDMI signal for longer transmission .
• Gets power from external adapter which makes better signal boosting performance
• Allow to chain multiple units for long distance
• CEC pass through
【Specification】
Cable: HDMI !
Resolution: up to 4K 60Hz 4:4:4 UHD BD Player 20M(Max) 20M(Max)
Max distance: input 20M/ output 20M TV HR01-4K6G
Compliance: HDMI 2.0, HDCP 2.2/1.4
Max Data rate: 18Gbps (6Gbps per color) Game Concole

EE01H HDMI EDID Emulator
Allows the source device to read the selected EDID information from the unit default or learned EDID memory
• Support 4 different EDID function: read, write, emulate, by pass
• Support up to 12 sets of default EDID and 3sets of custom-EDID
• Built-in USB port for user to write EDID
• Built-in equalizer for reliable signal quality performance.
• Support 3D
【Specification】
Resolution: up to 4K 30Hz, 4096x2160 24Hz
Compliance: HDMI 1.4,HDCP EE01H EE01H

SP008 HDMI Surge Protector
To provide surge protection for HDMI devices
• Compliant IEC61000-4-2,IEC61000-4-4,IEC61000-4-5
• Built-in ESD, EFT (impulse noise) protection.
【Specification】
Connector: HDMI female& HDMI female
Response time: < 1ns
DVD TV
SP008
SP008
