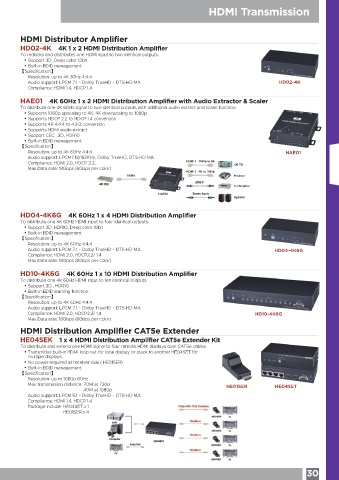

HDMI Transmission

HDMI Distributor Amplifier
HD02-4K 4K 1 x 2 HDMI Distribution Amplifier
To reclocks and distributes one HDMI input to two identical outputs.
• Support 3D, Deep color 12bit
• Built-in EDID management
【Specification】
Resolution: up to 4K 30Hz 4:4:4
Audio support: LPCM 7.1、Dolby TrueHD、DTS-HD MA HD02-4K
Compliance: HDMI 1.4, HDCP 1.4
HAE01 4K 60Hz 1 x 2 HDMI Distribution Amplifier with Audio Extractor & Scaler
To distribute one 4K 60Hz signal to two identical outputs with additional audio extract and scaler function.
• Supports 1080p upscaling to 4K, 4K downscaling to 1080p
• Supports HDCP 2.2 to HDCP 1.4 conversion
Application 1: 4K HDMI Audio Extractor
• Supports 4K 4:4:4 to 4:2:0 conversion
• Supports HDMI audio extract HDMI 1 1080p to 4K
• Support CEC , 3D, HDR10 HDMI 4K TV
• Built-in EDID management 4K BD HDMI 2 Audio Only
【Specification】 7.1 Amplifier
Resolution: up to 4K 60Hz 4:4:4 HAE01 HAE01
Audio support: LPCM7.1@192KHz, Dolby TrueHD, DTS-HD MA.
Application 2: 4K HDMI Up/Down Scaler with Audio Extractor
Compliance: HDMI 2.0, HDCP 2.2, HDMI 1 1080p to 4K 4K TV
Max Data rate: 18Gbps (6Gbps per color)
HDMI 2 4K to 1080p
HDMI Projector
4K BD SPDIF
5.1 Amplifier
HAE01 Stereo Audio
Speaker

HD04-4K6G 4K 60Hz 1 x 4 HDMI Distribution Amplifier
To distribute one 4K 60Hz HDMI input to four identical outputs.
• Support 3D, HDR10, Deep color 16bit
• Built-in EDID management
【Specification】
Resolution: up to 4K 60Hz 4:4:4
Audio support: LPCM 7.1、Dolby TrueHD、DTS-HD MA HD04-4K6G
Compliance: HDMI 2.0, HDCP2.2/ 1.4
Max Data rate: 18Gbps (6Gbps per color)

HD10-4K6G 4K 60Hz 1 x 10 HDMI Distribution Amplifier
To distribute one 4K 60Hz HDMI input to ten identical outputs.
• Support 3D , HDR10
• Built-in EDID learning function.
【Specification】
Resolution: up to 4K 60Hz 4:4:4
Audio support: LPCM 7.1、Dolby TrueHD、DTS-HD MA
Compliance: HDMI 2.0, HDCP2.2/ 1.4 HD10-4K6G
Max Data rate: 18Gbps (6Gbps per color)

HDMI Distribution Amplifier CAT5e Extender
HE04SEK 1 x 4 HDMI Distribution Amplifier CAT5e Extender Kit
To distribute and extend one HDMI signal to four remote HDMI displays over CAT5e cables.
• Transmitter built-in HDMI loop out for local display or stack to another HE04SET for
multiple displays.
• No power required at receiver side.( HE01SER)
• Built-in EDID management.
【Specification】
Resolution: up to 1080p 60Hz
Max transmission distance: 70M at 720p HE01SER HE04SET
40M at 1080p
Audio support: LPCM 5.1、Dolby TrueHD、DTS-HD MA
Compliance: HDMI 1.4, HDCP 1.4
Package include: HE04SET x 1
HE01SER x 4
