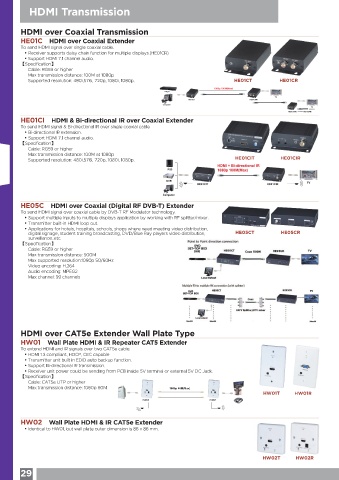

Page 32 -

HDMI Transmission

HDMI over Coaxial Transmission
HE01C HDMI over Coaxial Extender
To send HDMI signal over single coaxial cable.
• Receiver supports daisy chain function for multiple displays.(HE01CR)
• Support HDMI 7.1 channel audio.
【Specification】
Cable: RG59 or higher
Max transmission distance: 100M at 1080p
Supported resolution: 480i,576i, 720p, 1080i, 1080p. HE01CT HE01CR
1080p 100M(Max)
Player
TV
HE01CT HE01CR#1
Computer
TV
HE01CR#2 HE01CR#n
HE01CI HDMI & Bi-directional IR over Coaxial Extender
To send HDMI signal & Bi-directional IR over single coaxial cable
• Bi-directional IR extension.
• Support HDMI 7.1 channel audio.
【Specification】
Cable: RG59 or higher
Max transmission distance: 100M at 1080p
Supported resolution: 480i,576i, 720p, 1080i, 1080p. HE01CIT HE01CIR

HE05C HDMI over Coaxial (Digital RF DVB-T) Extender
To send HDMI signal over coaxial cable by DVB-T RF Modulator technology.
• Support multiple inputs to multiple displays application by working with RF splitter/mixer.
• Transmitter built-in HDMI loop out.
• Applications for hotels, hospitals, schools, shops where need meeting video distribution,
digital signage, student training broadcasting, DVD/Blue Ray players video distribution, HE05CT HE05CR
surveillance..etc.
【Specification】
Cable: RG59 or higher
Max transmission distance: 500M
Max supported resolution:1080p 50/60Hz
Video encoding: H.264
Audio encoding: MPEG2
Max channel: 99 channels

HDMI over CAT5e Extender Wall Plate Type
HW01 Wall Plate HDMI & IR Repeater CAT5 Extender
To extend HDMI and IR signals over two CAT5e cable.
• HDMI 1.3 compliant, HDCP, CEC capable
• Transmitter unit built in EDID auto backup function.
• Support Bi-directional IR transmission.
• Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: 1080p 60M 1080p 40M(Max)
HW01T HW01R
HW01 HW01

HW02 Wall Plate HDMI & IR CAT5e Extender
• Identical to HW01, but wall plate outer dimension is 86 x 86 mm.

HW02T HW02R
