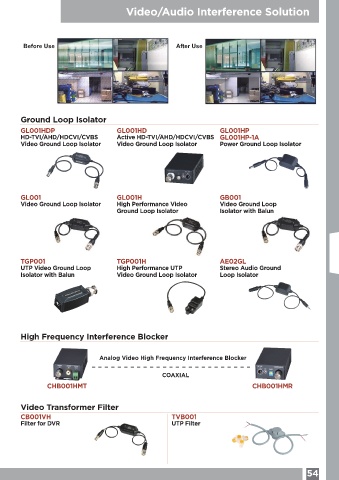

Video/Audio Interference Solution

Before Use After Use

Ground Loop Isolator

GL001HDP GL001HD GL001HP
HD-TVI/AHD/HDCVI/CVBS Active HD-TVI/AHD/HDCVI/CVBS GL001HP-1A
Video Ground Loop Isolator Video Ground Loop Isolator Power Ground Loop Isolator

GL001 GL001H GB001
Video Ground Loop Isolator High Performance Video Video Ground Loop
Ground Loop Isolator Isolator with Balun

TGP001 TGP001H AE02GL
UTP Video Ground Loop High Performance UTP Stereo Audio Ground
Isolator with Balun Video Ground Loop Isolator Loop Isolator

High Frequency Interference Blocker

Analog Video High Frequency Interference Blocker

COAXIAL
CHB001HMT CHB001HMR

Video Transformer Filter

CB001VH TVB001
Filter for DVR UTP Filter

54
