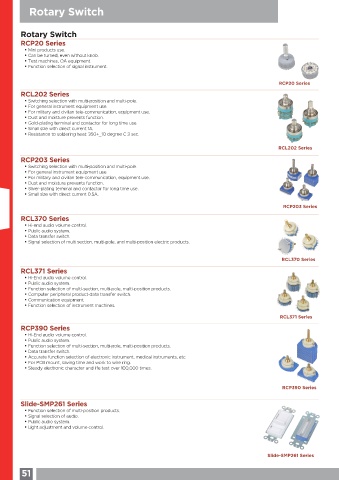

Rotary Switch

Rotary Switch

RCP20 Series
• Mini products use.
• Can be turned, even without knob.
• Test machines, OA equipment.
• Function selection of signal instrument.

RCP20 Series
RCL202 Series
• Switching selection with multi-position and multi-pole.
• For general instrument equipment use.
• For military and civilian tele-communication, equipment use.
• Dust and moisture prevents function.
• Gold-plating terminal and contactor for long time use.
• Small size with direct current 1A.
• Resistance to soldering heat: 350+_10 degree C 3 sec.

RCL202 Series
RCP203 Series
• Switching selection with multi-position and multi-pole.
• For general instrument equipment use.
• For military and civilian tele-communication, equipment use.
• Dust and moisture prevents function.
• Sliver-plating terminal and contactor for long time use.
• Small size with direct current 0.5A.

RCP203 Series
RCL370 Series
• Hi-end audio volume control.
• Public audio system.
• Data transfer switch.
• Signal selection of multi section, multi-pole, and multi-position electric products.

RCL370 Series
RCL371 Series
• Hi-End audio volume control.
• Public audio system.
• Function selection of multi-section, multi-pole, multi-position products.
• Computer peripheral product-data transfer switch.
• Communication equipment.
• Function selection of instrument machines.

RCL371 Series
RCP390 Series
• Hi-End audio volume control.
• Public audio system.
• Function selection of multi-section, multi-pole, multi-position products.
• Data transfer switch.
• Accurate function selection of electronic instrument, medical instruments, etc.
• For PCB mount, saving time and work to wire ring.
• Steady electronic character and life test over 100,000 times.

RCP390 Series

Slide-SMP261 Series
• Function selection of multi-position products.
• Signal selection of audio.
• Public audio system.
• Light adjustment and volume control.

Slide-SMP261 Series
