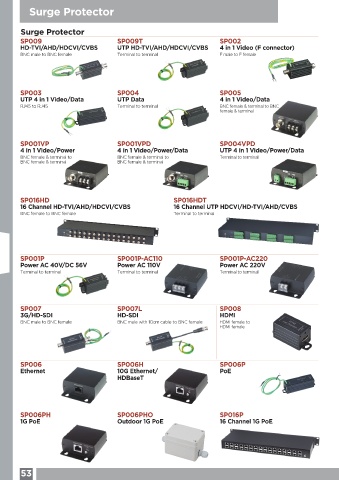

Surge Protector

Surge Protector
SP009 SP009T SP002
HD-TVI/AHD/HDCVI/CVBS UTP HD-TVI/AHD/HDCVI/CVBS 4 in 1 Video (F connector)
BNC male to BNC female Terminal to terminal F male to F female

SP003 SP004 SP005
UTP 4 in 1 Video/Data UTP Data 4 in 1 Video/Data
RJ45 to RJ45 Terminal to terminal BNC female & terminal to BNC
female & terminal

SP001VP SP001VPD SP004VPD
4 in 1 Video/Power 4 in 1 Video/Power/Data UTP 4 in 1 Video/Power/Data
BNC female & terminal to BNC female & terminal to Terminal to terminal
BNC female & terminal BNC female & terminal

SP016HD SP016HDT
16 Channel HD-TVI/AHD/HDCVI/CVBS 16 Channel UTP HDCVI/HD-TVI/AHD/CVBS
BNC female to BNC female Terminal to terminal

SP001P SP001P-AC110 SP001P-AC220
Power AC 40V/DC 56V Power AC 110V Power AC 220V
Terminal to terminal Terminal to terminal Terminal to terminal

SP007 SP007L SP008
3G/HD-SDI HD-SDI HDMI
BNC male to BNC female BNC male with 10cm cable to BNC female HDMI female to
HDMI female

SP006 SP006H SP006P
Ethernet 10G Ethernet/ PoE
HDBaseT

SP006PH SP006PHO SP016P
1G PoE Outdoor 1G PoE 16 Channel 1G PoE
