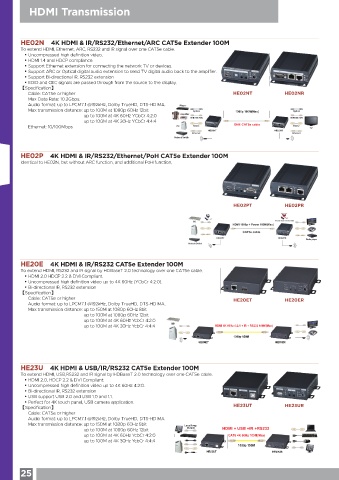

HDMI Transmission

HE02N 4K HDMI & IR/RS232/Ethernet/ARC CAT5e Extender 100M
To extend HDMI, Ethernet, ARC, RS232 and IR signal over one CAT5e cable.
• Uncompressed high definition video.
• HDMI 1.4 and HDCP compliance.
• Support Ethernet extension for connecting the network TV or devices.
• Support ARC or Optical digital audio extension to send TV digital audio back to the amplifier.
• Support Bi-directional IR, RS232 extension
• EDID and CEC signals are passed through from the source to the display.
【Specification】
Cable: CAT5e or higher HE02NT HE02NR
Max Data Rate: 10.2Gbps.
Audio format: up to LPCM7.1 @192kHz, Dolby TrueHD, DTS-HD MA. Player
Max transmission distance: up to 100M at 1080p 60Hz 12bit Optical 1080p 100M(Max) Optical
up to 100M at 4K 60Hz YCbCr 4:2:0 Amplifier HDMI with ARC HDMI with ARC
up to 100M at 4K 30Hz YCbCr 4:4:4
Ethernet: 10/100Mbps PC RS232 ONE CAT5e cable RS232 TV
HE02NT HE02NR
Ethernet Ethernet
Network Switch

HE02P 4K HDMI & IR/RS232/Ethernet/PoH CAT5e Extender 100M
Identical to HE02N, but without ARC function, and additional PoH function,

HE02PT HE02PR

BD Power from transmitter
HDMI 1080p + Power 100M(Max)
CAT5e cable
HE02PT HE02PR Media player
Network Switch

HE20E 4K HDMI & IR/RS232 CAT5e Extender 100M
To extend HDMI, RS232 and IR signal by HDBaseT 2.0 technology over one CAT5e cable.
• HDMI 2.0 HDCP 2.2 & DVI Compliant.
• Uncompressed high definition video up to 4K 60Hz (YCbCr 4:2:0).
• Bi-directional IR, RS232 extension
【Specification】
Cable: CAT5e or higher HE20ET HE20ER
Audio format: up to LPCM7.1 @192kHz, Dolby TrueHD, DTS-HD MA.
Max transmission distance: up to 150M at 1080p 60Hz 8bit
up to 100M at 1080p 60Hz 12bit
up to 100M at 4K 60Hz YcbCr 4:2:0
up to 100M at 4K 30Hz YcbCr 4:4:4 BD HDMI 4K 60Hz 4:2:0 + IR + RS232 100M(Max)
1080p 150M
HE20ET HE20ER

HE23U 4K HDMI & USB/IR/RS232 CAT5e Extender 100M
To extend HDMI, USB,RS232 and IR signal by HDBaseT 2.0 technology over one CAT5e cable.
• HDMI 2.0, HDCP 2.2 & DVI Compliant.
• Uncompressed high definition video up to 4K 60Hz 4:2:0.
• Bi-directional IR, RS232 extension
• USB support USB 2.0 and USB 1.0 and 1.1.
• Perfect for 4K touch panel, USB camera application.
【Specification】 HE23UT HE23UR
Cable: CAT5e or higher
Audio format: up to LPCM7.1 @192kHz, Dolby TrueHD, DTS-HD MA
Max transmission distance: up to 150M at 1080p 60Hz 8bit Local loop
up to 100M at 1080p 60Hz 12bit output HDMI + USB +IR +RS232
up to 100M at 4K 60Hz YcbCr 4:2:0 CAT6 4K 60Hz 100M(Max)
up to 100M at 4K 30Hz YcbCr 4:4:4
1080p 150M
HE23UT HE23UR
