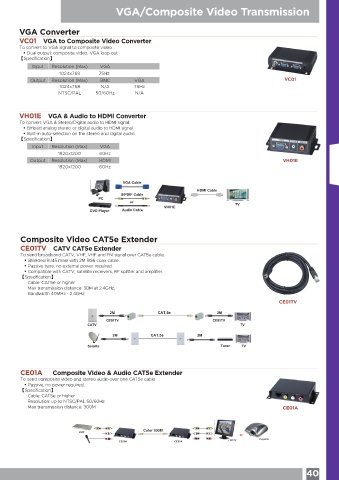

VGA/Composite Video Transmission

VGA Converter
VC01 VGA to Composite Video Converter
To convert to VGA signal to composite video
• Dual output: composite video, VGA loop out
【Specification】
Input Resolution (Max) VGA
1024x768 75Hz
Output Resolution (Max) BNC VGA VC01
1024x768 N/A 75Hz
NTSC/PAL 50/60Hz N/A

VH01E VGA & Audio to HDMI Converter
To convert VGA & Stereo/Digital audio to HDMI signal.
• Embed analog stereo or digital audio to HDMI signal.
• Built-in auto-selection on the stereo and digital audio.
【Specification】
Input Resolution (Max) VGA
1920x1200 60Hz
Output Resolution (Max) HDMI VH01E
1920x1200 60Hz

VGA Cable
HDMI Cable
S/PDIF Cable
PC
or TV
VH01E
DVD Player Audio Cable

Composite Video CAT5e Extender
CE01TV CATV CAT5e Extender
To send broadband CATV, VHF, VHF and FM signal over CAT5e cable.
• Shielded RJ45 male with 2M RG6 coax cable.
• Passive type, no external power required.
• Compatible with CATV, satellite receivers, RF splitter and amplifier.
【Specification】
Cable: CAT5e or higher
Max transmission distance: 30M at 2.4GHz,
Bandwidth 40MHz - 2.4GHz.
CE01TV
2M CAT.5e 2M
CE01TV CE01TV
CATV TV
2M CAT.5e 2M
Satelite Tuner TV

CE01A Composite Video & Audio CAT5e Extender
To send composite video and stereo audio over one CAT5e cable
• Passive, no power required.
【Specification】
Cable: CAT5e or higher
Resolution: up to NTSC/PAL 50/60Hz
Max transmission distance: 300M CE01A

Color 300M
DVD
or
CE01A CE01A
