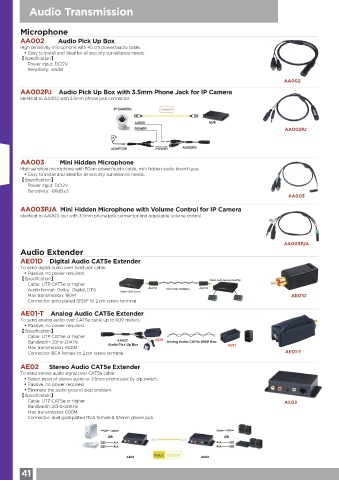

Audio Transmission

Microphone
AA002 Audio Pick Up Box
High sensitivity microphone with 45 cm power/audio cable.
• Easy to install and ideal for all security surveillance needs.
【Specification】
Power input: DC12V
Sensitivity: -65dB
AA002
AA002PJ Audio Pick Up Box with 3.5mm Phone Jack for IP Camera
Identical to AA002 with 3.5mm phone jack connector

AA002PJ

AA003 Mini Hidden Microphone
High sensitive microphone with 50cm power/audio cable, mini hidden audio board type.
• Easy to install and ideal for all security surveillance needs.
【Specification】
Power input: DC12V
Sensitivity: -66dB±3
AA003

AA003PJA Mini Hidden Microphone with Volume Control for IP Camera
Identical to AA003, but with 3.5mm phone jack connector and adjustable volume control

AA003PJA
Audio Extender
AE01D Digital Audio CAT5e Extender
To send digital audio over twist pair cable.
• Passive, no power required.
【Specification】
Cable: UTP CAT5e or higher
Audio format: Dolby Digital, DTS AE01D AE01D
Max transmission: 180M AE01D
Connector: gold-plated SPDIF to 2 pin screw terminal

AE01-T Analog Audio CAT5e Extender
To send analog audio over CAT5e cable up to 600 meters.
• Passive, no power required.
【Specification】
Cable: UTP CAT5e or higher
AA002
Bandwidth: 20Hz-20KHz Audio Pick Up Box AE01 Analog Audio CAT5e 600M Max
Max transmission: 600M AE01
Connector: RCA female to 2 pin screw terminal AE01-T

AE02 Stereo Audio CAT5e Extender
To send stereo audio signal over CAT5e cable
• Select input of stereo audio or 3.5mm phone jack by dip switch.
• Passive, no power required.
• Eliminate the audio ground loop problem.
【Specification】
Cable: UTP CAT5e or higher AE02
Bandwidth: 20Hz-20KHz
Max transmission: 600M
Connector: dual gold-plated RCA female & 3.5mm phone jack
