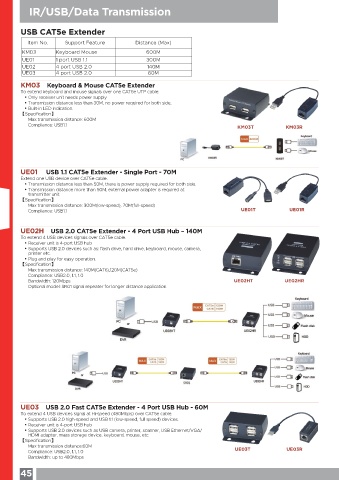

IR/USB/Data Transmission

USB CAT5e Extender

Item No. Support Feature Distance (Max)
KM03 Keyboard Mouse 600M
UE01 1 port USB 1.1 300M
UE02 4 port USB 2.0 140M
UE03 4 port USB 2.0 60M

KM03 Keyboard & Mouse CAT5e Extender
To extend keyboard and mouse signals over one CAT5e UTP cable.
• Only receiver unit needs power supply
• Transmission distance less than 30M, no power required for both side.
• Built-in LED indication.
【Specification】
Max transmission distance: 600M
Compliance: USB1.1 KM03T KM03R

UE01 USB 1.1 CAT5e Extender - Single Port - 70M
Extend one USB device over CAT5e cable.
• Transmission distance less than 50M, there is power supply required for both side.
• Transmission distance more than 50M, external power adapter is required at
transmitter unit.
【Specification】
Max transmission distance: 300M(low-speed), 70M(full-speed)
Compliance: USB1.1 UE01T UE01R

UE02H USB 2.0 CAT5e Extender - 4 Port USB Hub – 140M
To extend 4 USB devices signals over CAT5e cable.
• Receiver unit is 4-port USB hub
• Supports USB 2.0 devices such as: flash drive, hard drive, keyboard, mouse, camera,
printer etc.
• Plug and play for easy operation.
【Specification】
Max transmission distance: 140M(CAT6),120M(CAT5e)
Compliance: USB2.0, 1.1, 1.0
Bandwidth: 120Mbps UE02HT UE02HR
Optional model: SR01 signal repeater for longer distance application.

UE03 USB 2.0 Fast CAT5e Extender - 4 Port USB Hub - 60M
To extend 4 USB devices signal at Hi-speed (480Mbps) over CAT5e cable.
• Supports USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices.
• Receiver unit is 4-port USB hub
• Supports USB 2.0 devices such as USB camera, printer, scanner, USB Ethernet/VGA/
HDMI adapter, mass storage device, keyboard, mouse, etc.
【Specification】
Max transmission distance:60M
Compliance: USB2.0, 1.1, 1.0 UE03T UE03R
Bandwidth: up to 480Mbps
