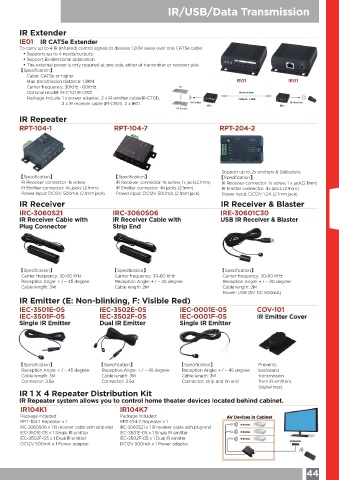

Page 47 -

IR/USB/Data Transmission

IR Extender
IE01 IR CAT5e Extender
To carry up to 4 IR (infrared) control signals to devices 1.2KM away over one CAT5e cable.
• Supports up to 4 inputs/outputs.
• Support Bi-directional application.
• The external power is only required at one side, either at transmitter or receiver side.
【Specification】
Cable: CAT5e or higher
Max transmission distance: 1.2KM IE01 IE01
Carrier frequency: 30KHz - 60KHz. BD
Optional model: IR-CT01,IR-CR01 Bi-directional
Package include: 1 x power adapter, 2 x IR emitter cable(IR-CT01), CAT5e/6 1.2KM
2 x IR receiver cable (IR-CR01). 2 x IE01. IR Emitter IE01 IE01 IR Receiver
AV Source
IR Repeater
RPT-104-1 RPT-104-7 RPT-204-2

Support up to 2x emitters & 2xblasters
【Specification】 【Specification】 【Specification】
IR Receiver connector: 1x screw IR Receiver connector: 1x screw, 1x jack(2.1mm) IR Receiver connector: 1x screw, 1 x jack(2.1mm)
IR Emitter connector: 4x jacks (2.1mm) IR Emitter connector: 4x jacks (2.1mm) IR Emitter connector: 4x jacks (2.1mm)
Power input: DC12V 500mA (2.1mm jack) Power input: DC12V 500mA (2.1mm jack) Power input: DC12V 1.2A (2.1mm jack)
IR Receiver IR Receiver & Blaster
IRC-3060S21 IRC-3060S06 IRE-30601C30
IR Receiver Cable with IR Receiver Cable with USB IR Receiver & Blaster
Plug Connector Strip End

【Specification】 【Specification】 【Specification】
Carrier frequency: 30-60 KHz Carrier frequency: 30-60 KHz Carrier frequency: 30-60 KHz
Reception Angle: + / – 45 degree Reception Angle: + / – 45 degree Reception Angle: + / – 30 degree
Cable length: 2M Cable length: 2M Cable length: 2M
Power: USB (5V DC 500mA)
IR Emitter (E: Non-blinking, F: Visible Red)
IEC-3501E-05 IEC-3502E-05 IEC-0001E-05 COV-101
IEC-3501F-05 IEC-3502F-05 IEC-0001F-05 IR Emitter Cover
Single IR Emitter Dual IR Emitter Single IR Emitter

【Specification】 【Specification】 【Specification】 Prevents
Reception Angle: + / – 45 degree Reception Angle: + / – 45 degree Reception Angle: + / – 45 degree backward
Cable length: 3M Cable length: 3M Cable length: 3M transmission
Connector: 3.5ø Connector: 3.5ø Connector: strip and tin end from IR emitters
(signal loss).
IR 1 X 4 Repeater Distribution Kit
IR Repeater system allows you to control home theater devices located behind cabinet.
IR104K1 IR104K7
Package included: Package included:
RPT-104-1 Repeater x 1 RPT-104-7 Repeater x 1
IRC-3060S06 x 1 IR receiver cable with strip end IRC-3060S21 x 1 IR receiver cable with plug end
IEC-3501E-05 x 1 Single IR emitter IEC-3501E-05 x 1 Single IR emitter
IEC-3502F-05 x 1 Dual IR emitter IEC-3502F-05 x 1 Dual IR emitter
DC12V 500mA x 1 Power adapter DC12V 500mA x 1 Power adapter
