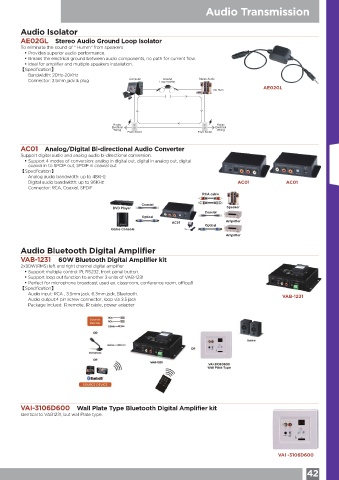

Page 45 -

Audio Transmission

Audio Isolator
AE02GL Stereo Audio Ground Loop Isolator
To eliminate the sound of “ Humm” from speakers
• Provides superior audio performance.
• Breaks the electrical ground between audio components, no path for current flow.
• Ideal for amplifier and multiple speakers installation.
【Specification】
Bandwidth: 20Hz-20KHz
Ground
Connector: 3.5mm jack & plug Computer Loop Isolator Stereo Audio
AE02GL
No Hum

House House
Electrical Electrical
Wiring Wiring
Power Socket Power Socket
AC01 Analog/Digital Bi-directional Audio Converter
Support digital audio and analog audio bi-directional conversion.
• Support 4 modes of conversion: analog in digital out, digital in analog out, digital
coaxial in to SPDIF out, SPDIF in coaxial out
【Specification】
Analog audio bandwidth: up to 48KHz
Digital audio bandwidth: up to 96KHz AC01 AC01
Connector: RCA, Coaxial, SPDIF
RCA cable
Coaxial
DVD Player Speaker
Coaxial
Optical
AC01 Amplifier
Optical
Game Console
Amplifier

Audio Bluetooth Digital Amplifier
VAB-1231 60W Bluetooth Digital Amplifier kit
2x30W(RMS) left and right channel digital amplifier
• Support multiple control: IR, RS232, front panel button.
• Support loop out function to another 3 units of VAB-1231
• Perfect for microphone broadcast used ex. classroom, conference room, office.ß
【Specification】
Audio input: RCA , 3.5mm jack, 6.3mm jack, Bluetooth. VAB-1231
Audio output:4 pin screw connector, loop via 3.5 jack
Package Inclued: IR remote, IR cable, power adapter

VAI-3106D600 Wall Plate Type Bluetooth Digital Amplifier kit
Identical to VAB1231, but wall Plate type.

VAI -3106D600

42
