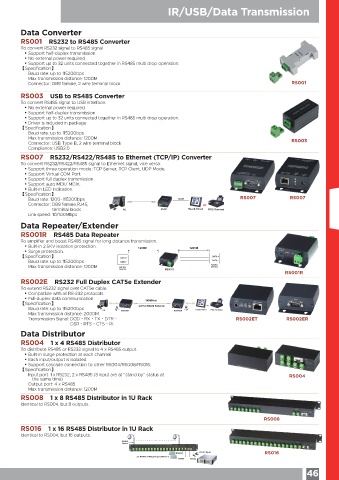

IR/USB/Data Transmission

Data Converter
RS001 RS232 to RS485 Converter
To convert RS232 signal to RS485 signal
• Support half-duplex transmission
• No external power required
• Support up to 32 units connected together in RS485 multi drop operation.
【Specification】
Baud rate: up to 115200bps
Max transmission distance: 1200M
Connector: DB9 female, 2 wire terminal block RS001
RS003 USB to RS485 Converter
To convert RS485 signal to USB interface.
• No external power required
• Support half-duplex transmission
• Support up to 32 units connected together in RS485 multi drop operation.
• Driver is included in package
【Specification】
Baud rate: up to 115200bps
Max transmission distance: 1200M
Connector: USB Type B, 2 wire terminal block RS003
Compliance: USB2.0
RS007 RS232/RS422/RS485 to Ethernet (TCP/IP) Converter
To convert RS232/RS422/RS485 signal to Ethernet signal, vice versa.
• Support three operation mode :TCP Server, TCP Client, UDP Mode.
• Support Virtual COM Port.
• Support full duplex transmission.
• Support auto MDI / MDIX.
• Built-in LED indication.
【Specification】
Baud rate: 1200- 115200bps RS485 RS007 RS007
Connector: DB9 female,RJ45, or
terminal block PC RS007 Touch Panel POS Terminal
Link speed: 10/100Mbps
Data Repeater/Extender

RS001R RS485 Data Repeater
To amplifier and boost RS485 signal for long distance transmission.
• Built-in 2.5KV isolation protection. 1200M 1200M
• Surge protection.
【Specification】
Baud rate: up to 115200bps
Max transmission distance: 1200M
RS001R
RS001R
RS002E RS232 Full Duplex CAT5e Extender
To extend RS232 signal over CAT5e cable.
• Compatible with all RS-232 protocols
• Full-duplex data communication 2KM(Max)
【Specification】 CAT5e RS232 Extender or
Baud rate: up to 115200bps PC Touch Panel POS Terminal
Max transmission distance: 2000M RS002ET RS002ER
Transmission Signal: DCD、RX、TX、DTR、 RS002ET RS002ER
DSR、RTS、CTS、RI.
Data Distributor
RS004 1 x 4 RS485 Distributor
To distribute RS485 or RS232 signal to 4 x RS485 output.
• Built-in surge protection at each channel.
• Each input/output is isolated.
• Support cascade connection to other RS004/RS008/RS016.
【Specification】
Input port: 1 x RS232, 2 x RS485 (3 input are at “stand by” status at RS004
the same time)
Output port: 4 x RS485
Max transmission distance: 1200M
RS008 1 x 8 RS485 Distributor in 1U Rack
Identical to RS004, but 8 outputs.

RS008
RS016 1 x 16 RS485 Distributor in 1U Rack
Identical to RS004, but 16 outputs.
RS485
Device
RS485 DC12V Input RS016
2 x RS485 or RS232 Input Selection
RS485 RS232
