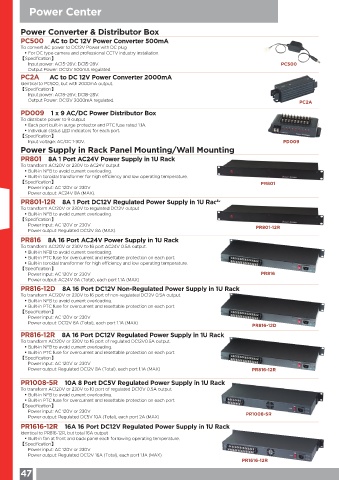

Page 50 -

Power Center

Power Converter & Distributor Box
PC500 AC to DC 12V Power Converter 500mA
To convert AC power to DC12V Power with DC plug
• For DC type camera and professional CCTV industry installation.
【Specification】
Input power: AC15~26V; DC15~28V. PC500
Output Power: DC12V 500mA regulated.
PC2A AC to DC 12V Power Converter 2000mA
Identical to PC500, but with 2000mA output.
【Specification】
Input power: AC18~26V; DC18~28V.
Output Power: DC12V 2000mA regulated. PC2A

PD009 1 x 9 AC/DC Power Distributor Box
To distribute power to 9 output
• Each port built-in surge protector and PTC fuse rated 1.1A.
• Individual status LED indicators for each port.
【Specification】
Input voltage: AC/DC 1-30V. PD009
Power Supply in Rack Panel Mounting/Wall Mounting
PR801 8A 1 Port AC24V Power Supply in 1U Rack
To transform AC120V or 230V to AC24V output
• Built-in NFB to avoid current overloading.
• Built-in toroidal transformer for high efficiency and low operating temperature.
【Specification】 PR801
Power input: AC 120V or 230V
Power output: AC24V 8A (MAX).
PR801-12R 8A 1 Port DC12V Regulated Power Supply in 1U Rack
To transform AC120V or 230V to regulated DC12V output
• Built-in NFB to avoid current overloading.
【Specification】
Power input: AC 120V or 230V PR801-12R
Power output: Regulated DC12V 8A (MAX).
PR816 8A 16 Port AC24V Power Supply in 1U Rack
To transform AC120V or 230V to 16 port AC24V 0.5A output.
• Built-in NFB to avoid current overloading.
• Built-in PTC fuse for overcurrent and resettable protection on each port.
• Built-in toroidal transformer for high efficiency and low operating temperature.
【Specification】
Power input: AC 120V or 230V PR816
Power output: AC24V 8A (Total), each port 1.1A (MAX)
PR816-12D 8A 16 Port DC12V Non-Regulated Power Supply in 1U Rack
To transform AC120V or 230V to 16 port of non-regulated DC12V 0.5A output.
• Built-in NFB to avoid current overloading.
• Built-in PTC fuse for overcurrent and resettable protection on each port.
【Specification】
Power input: AC 120V or 230V
Power output: DC12V 8A (Total), each port 1.1A (MAX)
PR816-12D
PR816-12R 8A 16 Port DC12V Regulated Power Supply in 1U Rack
To transform AC120V or 230V to 16 port of regulated DC12V0.5A output.
• Built-in NFB to avoid current overloading.
• Built-in PTC fuse for overcurrent and resettable protection on each port.
【Specification】
Power input: AC 120V or 230V
Power output: Regulated DC12V 8A (Total), each port 1.1A (MAX) PR816-12R

PR1008-5R 10A 8 Port DC5V Regulated Power Supply in 1U Rack
To transform AC120V or 230V to 10 port of regulated DC10V 0.5A output.
• Built-in NFB to avoid current overloading.
• Built-in PTC fuse for overcurrent and resettable protection on each port.
【Specification】
Power input: AC 120V or 230V PR1008-5R
Power output: Regulated DC5V 10A (Total), each port 2A (MAX)
PR1616-12R 16A 16 Port DC12V Regulated Power Supply in 1U Rack
Identical to PR816-12R, but total 16A output
• Built-in fan at front and back panel each for lowing operating temperature.
【Specification】
Power input: AC 120V or 230V
Power output: Regulated DC12V 16A (Total), each port 1.1A (MAX)
PR1616-12R
47
