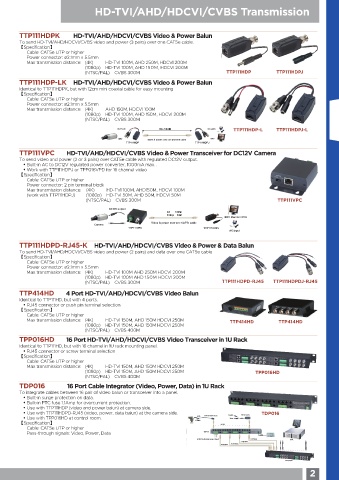

HD-TVI/AHD/HDCVI/CVBS Transmission
TTP111HDPK HD-TVI/AHD/HDCVI/CVBS Video & Power Balun
To send HD-TVI/AHD/HDCVI/CVBS video and power (3 pairs) over one CAT5e cable.
【Specification】
Cable: CAT5e UTP or higher
Power connector: ø2.1mm x 5.5mm
Max transmission distance: (4K) HD-TVI 100M, AHD 250M, HDCVI 200M
(1080p) HD-TVI 100M, AHD 150M, HDCVI 200M
(NTSC/PAL) CVBS 300M TTP111HDP TTP111HDPJ
TTP111HDP-LK HD-TVI/AHD/HDCVI/CVBS Video & Power Balun
Identical to TTP111HDPK, but with 12cm mini coaxial cable for easy mounting
【Specification】
Cable: CAT5e UTP or higher
Power connector: ø2.1mm x 5.5mm
Max transmission distance: (4K) AHD 150M, HDCVI 100M
(1080p) HD-TVI 100M, AHD 150M, HDCVI 200M
(NTSC/PAL) CVBS 300M
50~100M TTP111HDP-L TTP111HDPJ-L
video & power over one network cable
TTP111HDP TTP111HDPJ
TTP111VPC HD-TVI/AHD/HDCVI/CVBS Video & Power Transceiver for DC12V Camera
To send video and power (2 or 3 pairs) over CAT5e cable with regulated DC12V output.
• Built-in AC to DC12V regulated power converter, 1000mA max. .
• Work with TTP111HDPJ or TPP016VPD for 16 channel video
【Specification】
Cable: CAT5e UTP or higher
Power connector: 2 pin terminal block
Max transmission distance: (4K) HD-TVI 100M, AHD150M, HDCVI 100M
(work with TTP111HDPJ) (1080p) HD-TVI 50M, AHD 50M, HDCVI 50M
(NTSC/PAL) CVBS 300M TTP111VPC
DC12V output
4K 100M
1080p 50M
BNC Monitor/ DVR
Video & power over one CAT5e cable
Camera
TTP111VPC TTP111HDPJ
AC input
TTP111HDPD-RJ45-K HD-TVI/AHD/HDCVI/CVBS Video & Power & Data Balun
To send HD-TVI/AHD/HDCVI/CVBS video and power (2 pairs) and data over one CAT5e cable
【Specification】
Cable: CAT5e UTP or higher
Power connector: ø2.1mm x 5.5mm
Max transmission distance: (4K) HD-TVI 100M AHD 250M HDCVI 200M
(1080p) HD-TVI 100M AHD 150M HDCVI 200M
(NTSC/PAL) CVBS 300M TTP111HDPD-RJ45 TTP111HDPDJ-RJ45
TTP414HD 4 Port HD-TVI/AHD/HDCVI/CVBS Video Balun
Identical to TTP111HD, but with 4 ports.
• RJ45 connector or push pin terminal selection
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: (4K) HD-TVI 150M, AHD 150M HDCVI 250M TTP414HD TTP414HD
(1080p) HD-TVI 150M, AHD 150M HDCVI 250M
(NTSC/PAL) CVBS 400M
TPP016HD 16 Port HD-TVI/AHD/HDCVI/CVBS Video Transceiver in 1U Rack
Identical to TTP111HD, but with 16 channel in 1U rack mounting panel.
• RJ45 connector or screw terminal selection
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: (4K) HD-TVI 150M, AHD 150M HDCVI 250M
(1080p) HD-TVI 150M, AHD 150M HDCVI 250M TPP016HD
(NTSC/PAL) CVBS 400M
TDP016 16 Port Cable Integrator (Video, Power, Data) in 1U Rack
To integrate cables between 16 pair of video balun or transceiver into a panel.
• Built-in surge protection on data.
• Built-in PTC fuse 1.1Amp for overcurrent protection.
• Use with TTP111HDP (video and power balun) at camera side.
• Use with TTP111HDPD-RJ45 (video, power, data balun) at the camera side. TDP016
• Use with TPP016HD at control room. TTP111HDPD-RJ45 TTP111HDP-L
【Specification】
Cable: CAT5e UTP or higher
Pass-through signals: Video, Power, Data
AC/DC Individual power input DVR
TPP016HD
