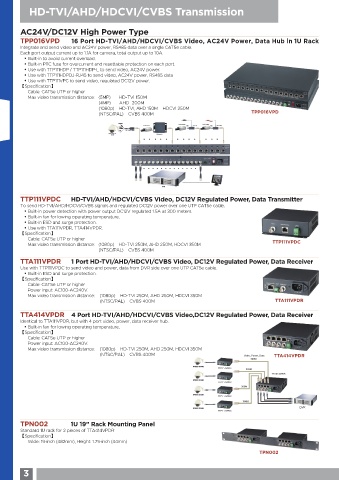

Page 6 -
P. 6
HD-TVI/AHD/HDCVI/CVBS Transmission
AC24V/DC12V High Power Type
TPP016VPD 16 Port HD-TVI/AHD/HDCVI/CVBS Video, AC24V Power, Data Hub in 1U Rack
Integrate and send video and AC24V power, RS485 data over a single CAT5e cable.
Each port output current up to 1.1A for camera, total output up to 10A.
• Built-in to avoid current overload.
• Built-in PTC fuse for overcurrent and resettable protection on each port.
• Use with TTP111HDP / TTP111HDP-L to send video, AC24V power.
• Use with TTP111HDPDJ-RJ45 to send video, AC24V power, RS485 data
• Use with TTP111VPC to send video, regulated DC12V power.
【Specification】
Cable: CAT5e UTP or higher
Max video transmission distance: (5MP) HD-TVI 150M
(4MP) AHD 200M
(1080p) HD-TVI, AHD 150M HDCVI 250M
(NTSC/PAL) CVBS 400M TPP016VPD
DVR
TTP111VPDC HD-TVI/AHD/HDCVI/CVBS Video, DC12V Regulated Power, Data Transmitter
To send HD-TVI/AHD/HDCVI/CVBS signals and regulated DC12V power over one UTP CAT5e cable.
• Built-in power detection with power output DC12V regulated 1.5A at 300 meters.
• Built-in fan for lowing operating temperature.
• Built-in ESD and surge protection.
• Use with TTA111VPDR, TTA414VPDR.
【Specification】
Cable: CAT5e UTP or higher
Max video transmission distance: (1080p) HD-TVI 250M, AHD 250M, HDCVI 350M TTP111VPDC
(NTSC/PAL) CVBS 400M
TTA111VPDR 1 Port HD-TVI/AHD/HDCVI/CVBS Video, DC12V Regulated Power, Data Receiver
Use with TTP111VPDC to send video and power, data from DVR side over one UTP CAT5e cable.
• Built-in ESD and surge protection.
【Specification】
Cable: CAT5e UTP or higher
Power input: AC100-AC240V.
Max video transmission distance: (1080p) HD-TVI 250M, AHD 250M, HDCVI 350M
(NTSC/PAL) CVBS 400M TTA111VPDR
TTA414VPDR 4 Port HD-TVI/AHD/HDCVI/CVBS Video,DC12V Regulated Power, Data Receiver
Identical to TTA111VPDR, but with 4 port video, power, data receiver hub.
• Built-in fan for lowing operating temperature.
【Specification】
Cable: CAT5e UTP or higher
Power input: AC100-AC240V.
Max video transmission distance: (1080p) HD-TVI 250M, AHD 250M, HDCVI 350M
(NTSC/PAL) CVBS 400M Video, Power, Data TTA414VPDR
300M
TTP111VPDC 300M
TTA414VPDR
TTP111VPDC
300M
TTP111VPDC
300M
DVR
TTP111VPDC
TPN002 1U 19” Rack Mounting Panel
Standard 1U rack for 2 pieces of TTA414VPDR
【Specification】
Wide: 19-inch (482mm), Height: 1.75-inch (44mm)
TPN002
