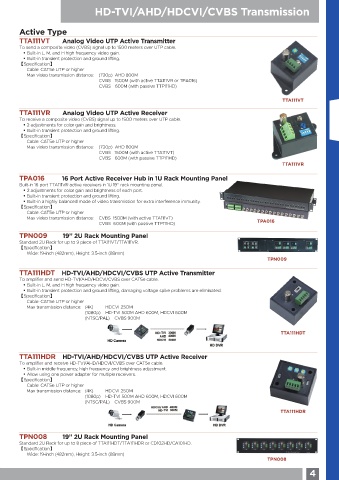

Page 7 -

HD-TVI/AHD/HDCVI/CVBS Transmission

Active Type
TTA111VT Analog Video UTP Active Transmitter
To send a composite video (CVBS) signal up to 1500 meters over UTP cable.
• Built-in L, M, and H high frequency video gain.
• Built-in transient protection and ground lifting.
【Specification】
Cable: CAT5e UTP or higher
Max video transmission distance: (720p) AHD 800M
CVBS 1500M (with active TTA111VR or TPA016)
CVBS 600M (with passive TTP111HD)

TTA111VT

TTA111VR Analog Video UTP Active Receiver
To receive a composite video (CVBS) signal up to 1500 meters over UTP cable.
• 2 adjustments for color gain and brightness.
• Built-in transient protection and ground lifting.
【Specification】
Cable: CAT5e UTP or higher
Max video transmission distance: (720p) AHD 800M
CVBS 1500M (with active TTA111VT)
CVBS 600M (with passive TTP111HD)
TTA111VR

TPA016 16 Port Active Receiver Hub in 1U Rack Mounting Panel
Built-in 16 port TTA111VR active receivers in 1U 19” rack mounting panel.
• 2 adjustments for color gain and brightness of each port.
• Built-in transient protection and ground lifting.
• Built-in a highly balanced mode of video transmission for extra interference immunity.
【Specification】
Cable: CAT5e UTP or higher
Max video transmission distance: CVBS 1500M (with active TTA111VT)
CVBS 600M (with passive TTP111HD) TPA016

TPN009 19” 2U Rack Mounting Panel
Standard 2U Rack for up to 9 piece of TTA111VT/TTA111VR.
【Specification】
Wide: 19-inch (482mm), Height: 3.5-inch (88mm)
TPN009

TTA111HDT HD-TVI/AHD/HDCVI/CVBS UTP Active Transmitter
To amplifier and send HD-TVI/AHD/HDCVI/CVBS over CAT5e cable.
• Built-in L, M, and H high frequency video gain.
• Built-in transient protection and ground lifting, damaging voltage spike problems are eliminated.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: (4K) HDCVI 250M
(1080p) HD-TVI 500M AHD 600M, HDCVI 600M
(NTSC/PAL) CVBS 900M

TTA111HDT

TTA111HDR HD-TVI/AHD/HDCVI/CVBS UTP Active Receiver
To amplifier and receive HD-TVI/AHD/HDCVI/CVBS over CAT5e cable.
• Built-in middle frequency, high frequency and brightness adjustment.
• Allow using one power adapter for multiple receivers.
【Specification】
Cable: CAT5e UTP or higher
Max transmission distance: (4K) HDCVI 250M
(1080p) HD-TVI 500M AHD 600M, HDCVI 600M
(NTSC/PAL) CVBS 900M
TTA111HDR

TPN008 19” 2U Rack Mounting Panel
Standard 2U Rack for up to 8 piece of TTA111HDT/TTA111HDR or CD102HD/CA101HD.
【Specification】
Wide: 19-inch (482mm), Height: 3.5-inch (88mm)
TPN008
