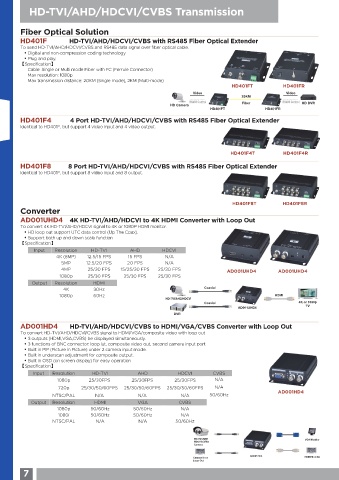

Page 10 -

HD-TVI/AHD/HDCVI/CVBS Transmission

Fiber Optical Solution
HD401F HD-TVI/AHD/HDCVI/CVBS with RS485 Fiber Optical Extender
To send HD-TVI/AHD/HDCVI/CVBS and RS485 data signal over fiber optical cable.
• Digital and non-compression coding technology
• Plug and play.
【Specification】
Cable: Single or Multi mode Fiber with FC (Ferrule Connector)
Max resolution: 1080p
Max transmission distance: 20KM (Single mode), 2KM (Multi-mode)
HD401FT HD401FR
Video Video
20KM
RS485 Control Fiber RS485 Control HD DVR
HD Camera
HD401FT HD401FR
HD401F4 4 Port HD-TVI/AHD/HDCVI/CVBS with RS485 Fiber Optical Extender
Identical to HD401F, but support 4 video input and 4 video output.

HD401F4T HD401F4R

HD401F8 8 Port HD-TVI/AHD/HDCVI/CVBS with RS485 Fiber Optical Extender
Identical to HD401F, but support 8 video input and 8 output.

HD401F8T HD401F8R
Converter

AD001UHD4 4K HD-TVI/AHD/HDCVI to 4K HDMI Converter with Loop Out
To convert 4K HD-TVI/AHD/HDCVI signal to 4K or 1080P HDMI monitor.
• HD loop out support UTC data control (Up The Coax).
• Support both up and down scale function
【Specification】
Input Resolution HD-TVI AHD HDCVI
4K (8MP) 12.5/15 FPS 15 FPS N/A
5MP 12.5/20 FPS 20 FPS N/A
4MP 25/30 FPS 15/25/30 FPS 25/30 FPS AD001UHD4 AD001UHD4
1080p 25/30 FPS 25/30 FPS 25/30 FPS
Output Resolution HDMI
4K 30Hz Coaxial
1080p 60Hz HDMI
HD-TVI/AHD/HDCVI
Coaxial 4K or 1080p
AD001UHD4 TV
DVR

AD001HD4 HD-TVI/AHD/HDCVI/CVBS to HDMI/VGA/CVBS Converter with Loop Out
To convert HD-TVI/AHD/HDCVI/CVBS signal to HDMI/VGA/composite video with loop out
• 3 outputs (HDMI,VGA,CVBS) be displayed simultaneously.
• 3 functions of BNC connector: loop lut, composite video out, second camera input port.
• Built in PIP (Picture in Picture) under 2 camera input mode.
• Built in underscan adjustment for composite output.
• Built in OSD (on screen display) for easy operation
【Specification】
Input Resolution HD-TVI AHD HDCVI CVBS
1080p 25/30FPS 25/30FPS 25/30FPS N/A
720p 25/30/50/60FPS 25/30/50/60FPS 25/30/50/60FPS N/A
NTSC/PAL N/A N/A N/A 50/60Hz AD001HD4
Output Resolution HDMI VGA CVBS
1080p 50/60Hz 50/60Hz N/A
1080i 50/60Hz 50/60Hz N/A
NTSC/PAL N/A N/A 50/60Hz

HD-TVI/AHD VGA Monitor
HDCVI/CVBS
Camera
AD001HD4 HDMI Monitor
Camera In or
Loop Out
