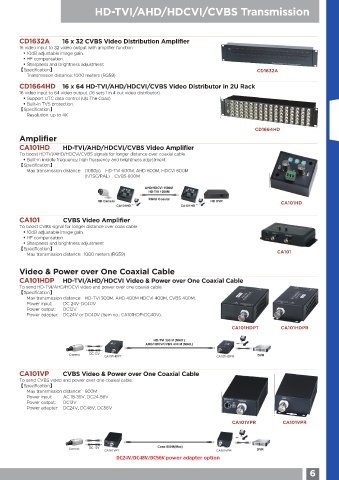

HD-TVI/AHD/HDCVI/CVBS Transmission

CD1632A 16 x 32 CVBS Video Distribution Amplifier
16 video input to 32 video output with amplifier function
• 10dB adjustable image gain.
• HF compensation.
• Sharpness and brightness adjustment
【Specification】 CD1632A
Transmission distance: 1000 meters (RG59)
CD1664HD 16 x 64 HD-TVI/AHD/HDCVI/CVBS Video Distributor in 2U Rack
16 video input to 64 video output. (16 sets 1 in 4 out video distributor)
• Support UTC data control (Up The Coax)
• Built-in TVS protection.
【Specification】
Resolution: up to 4K

CD1664HD
Amplifier

CA101HD HD-TVI/AHD/HDCVI/CVBS Video Amplifier
To boost HDTVI/AHD/HDCVI/CVBS signals for longer distance over coaxial cable.
• Built-in middle frequency, high frequency and brightness adjustment.
【Specification】
Max transmission distance: (1080p) HD-TVI 600M, AHD 800M, HDCVI 800M
(NTSC/PAL) CVBS 600M

AHD/HDCVI 1500M
HD-TVI 1200M
RG6U Coaxial
HD Camera HD DVR CA101HD
CA101HD CA101HD

CA101 CVBS Video Amplifier
To boost CVBS signal for longer distance over coax cable.
• 10dB adjustable image gain.
• HF compensation.
• Sharpness and brightness adjustment
【Specification】
Max transmission distance: 1000 meters (RG59) CA101

Video & Power over One Coaxial Cable

CA101HDP HD-TVI/AHD/HDCVI Video & Power over One Coaxial Cable
To send HD-TVI/AHD/HDCVI video and power over one coaxial cable.
【Specification】
Max transmission distance: HD-TVI 300M, AHD 400M HDCVI 400M, CVBS 400M.
Power input: DC 24V-DC40V
Power output: DC12V
Power adapter: DC24V or DC40V (Item no.: CA101HDP-DC40V).

CA101HDPT CA101HDPR

HD-TVI 300 M (MAX.)
AHD/HDCV/CVBS 400 M (MAX.)
Camera DC 12V CA101HDPT CA101HDPR DVR

CA101VP CVBS Video & Power over One Coaxial Cable
To send CVBS video and power over one coaxial cable.
【Specification】
Max transmission distance: 800M
Power input: AC 18-35V, DC24-56V
Power output: DC12V
Power adapter: DC24V, DC48V, DC56V

CA101VPR CA101VPR

Camera DC 12V CA101VPT Coax 800M(Max) CA101VPR DVR
DC24V/DC48V/DC56V power adapter option
