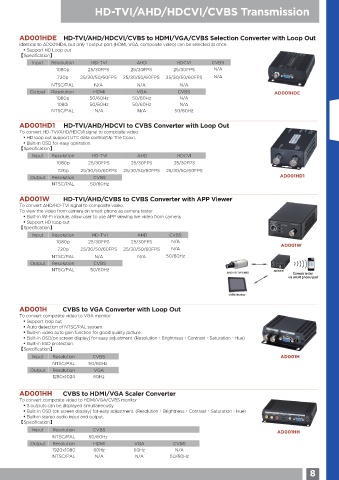

HD-TVI/AHD/HDCVI/CVBS Transmission

AD001HDE HD-TVI/AHD/HDCVI/CVBS to HDMI/VGA/CVBS Selection Converter with Loop Out
Identical to AD001HD4, but only 1 output port (HDMI, VGA, composite video) can be selected at once.
• Support HD Loop out
【Specification】
Input Resolution HD-TVI AHD HDCVI CVBS
1080p 25/30FPS 25/30FPS 25/30FPS N/A
720p 25/30/50/60FPS 25/30/50/60FPS 25/30/50/60FPS N/A
NTSC/PAL N/A N/A N/A
Output Resolution HDMI VGA CVBS AD001HDE
1080p 50/60Hz 50/60Hz N/A
1080i 50/60Hz 50/60Hz N/A
NTSC/PAL N/A N/A 50/60Hz

AD001HD1 HD-TVI/AHD/HDCVI to CVBS Converter with Loop Out
To convert HD-TVI/AHD/HDCVI signal to composite video.
• HD loop out support UTC data control(Up The Coax).
• Built-in OSD for easy operation.
【Specification】
Input Resolution HD-TVI AHD HDCVI
1080p 25/30FPS 25/30FPS 25/30FPS
720p 25/30/50/60FPS 25/30/50/60FPS 25/30/50/60FPS
Output Resolution CVBS AD001HD1
NTSC/PAL 50/60Hz

AD001W HD-TVI/AHD/CVBS to CVBS Converter with APP Viewer
To convert AHD/HD-TVI signal to composite video.
To view the video from camera on smart phone as camera tester.
• Built-in Wi-Fi module, allow user to use APP viewing live video from camera.
• Support HD loop out
【Specification】
Input Resolution HD-TVI AHD CVBS
1080p 25/30FPS 25/30FPS N/A
720p 25/30/50/60FPS 25/30/50/60FPS N/A AD001W
NTSC/PAL N/A N/A 50/60Hz
Output Resolution CVBS
NTSC/PAL 50/60Hz AD001W
AHD/HD-TVI/CVBS Camera tester
via smart phone/ pad

CVBS Monitor

AD001H CVBS to VGA Converter with Loop Out
To convert composite video to VGA monitor
• Support loop out
• Auto detection of NTSC/PAL system.
• Built-in video auto gain function for good quality picture.
• Built-in OSD(on screen display) for easy adjustment. (Resolution、Brightness、Contrast、Saturation、Hue)
• Built-in ESD protection.
【Specification】
Input Resolution CVBS AD001H
NTSC/PAL 50/60Hz
Output Resolution VGA
1280x1024 60Hz

AD001HH CVBS to HDMI/VGA Scaler Converter
To convert composite video to HDMI/VGA/CVBS monitor
• 3 outputs can be displayed simultaneously
• Built-in OSD (on screen display) for easy adjustment. (Resolution、Brightness、Contrast、Saturation、Hue)
• Built-in stereo audio input and output.
【Specification】
Input Resolution CVBS AD001HH
NTSC/PAL 50/60Hz
Output Resolution HDMI VGA CVBS
1920x1080 60Hz 60Hz N/A
NTSC/PAL N/A N/A 50/60Hz
