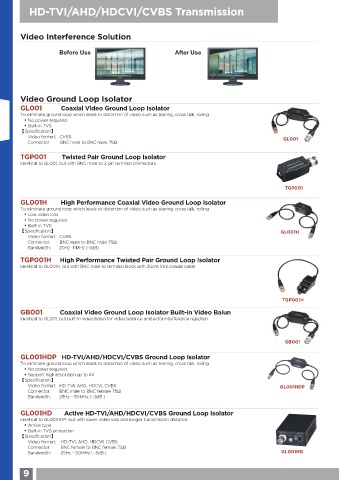

HD-TVI/AHD/HDCVI/CVBS Transmission

Video Interference Solution

Before Use After Use

Video Ground Loop Isolator
GL001 Coaxial Video Ground Loop Isolator
To eliminate ground loop which leads to distortion of video such as tearing, cross talk, rolling
• No power required.
• Built-in TVS
【Specification】
Video format: CVBS GL001
Connector: BNC male to BNC male 75Ω

TGP001 Twisted Pair Ground Loop Isolator
Identical to GL001, but with BNC male to 2 pin terminal connectors.

TGP001

GL001H High Performance Coaxial Video Ground Loop Isolator
To eliminate ground loop which leads to distortion of video such as tearing, cross talk, rolling
• Low video loss
• No power required.
• Built-in TVS
【Specification】 GL001H
Video format: CVBS
Connector: BNC male to BNC male 75Ω
Bandwidth: 20Hz -11MHz (-3dB)
TGP001H High Performance Twisted Pair Ground Loop Isolator
Identical to GL001H, but with BNC male to terminal block with 20cm mini coaxial cable.

TGP001H

GB001 Coaxial Video Ground Loop Isolator Built-in Video Balun
Identical to GL001, but built-in video balun for video balance and extra interference rejection

GB001

GL001HDP HD-TVI/AHD/HDCVI/CVBS Ground Loop Isolator
To eliminate ground loop which leads to distortion of video such as tearing, cross talk, rolling
• No power required.
• Support high resolution up to 4K
【Specification】
Video format: HD-TVI, AHD, HDCVI, CVBS GL001HDP
Connector: BNC male to BNC female 75Ω
Bandwidth: 25Hz ~ 50MHz ( -3dB )

GL001HD Active HD-TVI/AHD/HDCVI/CVBS Ground Loop Isolator
Identical to GL001HDP, but with lower video loss and longer transmission distance
• Active type
• Built-in TVS protection
【Specification】
Video format: HD-TVI, AHD, HDCVI, CVBS
Connector: BNC female to BNC female 75Ω
Bandwidth: 25Hz ~ 50MHz ( -3dB ) GL001HD
