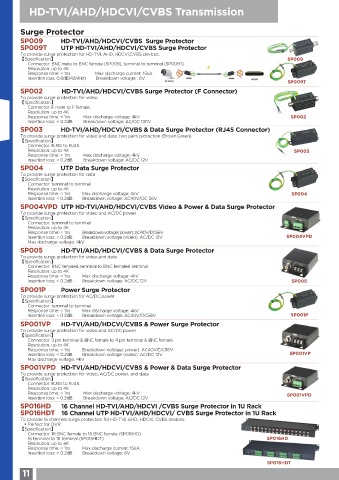

Page 14 -

HD-TVI/AHD/HDCVI/CVBS Transmission

Surge Protector
SP009 HD-TVI/AHD/HDCVI/CVBS Surge Protector
SP009T UTP HD-TVI/AHD/HDCVI/CVBS Surge Protector
To provide surge protection for HD-TVI, AHD, HDCVI,CVBS devices.
【Specification】 SP009
Connector: BNC male to BNC female (SP009), terminal to terminal (SP009T).
Resolution: up to 4K
Response time: < 1ns Max discharge current: 15kA
Insertion loss: 0.8dB(42MHz) Breakdown voltage : 6V
SP009T
SP002 HD-TVI/AHD/HDCVI/CVBS Surge Protector (F Connector)
To provide surge protection for video
【Specification】
Connector: F male to F female.
Resolution: up to 4K
Response time: < 1ns Max discharge voltage: 4kV SP002
Insertion loss: < 0.2dB Breakdown voltage: AC/DC 130V
SP003 HD-TVI/AHD/HDCVI/CVBS & Data Surge Protector (RJ45 Connector)
To provide surge protection for video and data, two pairs protection (Brown,Green)
【Specification】
Connector: RJ45 to RJ45.
Resolution: up to 4K SP003
Response time: < 1ns Max discharge voltage: 4kV
Insertion loss: < 0.2dB Breakdown voltage: AC/DC 12V
SP004 UTP Data Surge Protector
To provide surge protection for data
【Specification】
Connector: terminal to terminal
Resolution: up to 4K
Response time: < 1ns Max discharge voltage: 4kV SP004
Insertion loss: < 0.2dB Breakdown voltage: AC40V/DC 56V
SP004VPD UTP HD-TVI/AHD/HDCVI/CVBS Video & Power & Data Surge Protector
To provide surge protection for video and AC/DC power
【Specification】
Connector: terminal to terminal
Resolution: up to 4K
Response time: < 1ns Breakdown voltage( power): AC40V/DC56V
Insertion loss: < 0.2dB Breakdown voltage (video): AC/DC 12V SP004VPD
Max discharge voltage: 4kV
SP005 HD-TVI/AHD/HDCVI/CVBS & Data Surge Protector
To provide surge protection for video and data
【Specification】
Connector: BNC female& terminal to BNC female& terminal
Resolution: up to 4K
Response time: < 1ns Max discharge voltage: 4kV
Insertion loss: < 0.2dB Breakdown voltage: AC/DC 12V SP005
SP001P Power Surge Protector
To provide surge protection for AC/DC power
【Specification】
Connector: terminal to terminal
Response time: < 1ns Max discharge voltage: 4kV
Insertion loss: < 0.2dB Breakdown voltage: AC40V/DC56V SP001P
SP001VP HD-TVI/AHD/HDCVI/CVBS & Power Surge Protector
To provide surge protection for video and AC/DC power
【Specification】
Connector: 3 pin terminal & BNC female to 4 pin terminal & BNC female.
Resolution: up to 4K
Response time: < 1ns Breakdown voltage( power): AC40V/DC56V
Insertion loss: < 0.2dB Breakdown voltage (video): AC/DC 12V SP001VP
Max discharge voltage: 4kV
SP001VPD HD-TVI/AHD/HDCVI/CVBS & Power & Data Surge Protector
To provide surge protection for video, AC/DC power, and data
【Specification】
Connector: RJ45 to RJ45.
Resolution: up to 4K
Response time: < 1ns Max discharge voltage: 4kV SP001VPD
Insertion loss: < 0.2dB Breakdown voltage: AC/DC 12V
SP016HD 16 Channel HD-TVI/AHD/HDCVI /CVBS Surge Protector in 1U Rack
SP016HDT 16 Channel UTP HD-TVI/AHD/HDCVI/ CVBS Surge Protector in 1U Rack
To provide 16 channels surge protection for HD-TVI, AHD, HDCVI, CVBS devices.
• Perfect for DVR.
【Specification】
Connector: 16 BNC female to 16 BNC female (SP016HD)
16 terminal to 16 terminal (SP016HDT) SP016HD
Resolution: up to 4K
Response time: < 1ns Max discharge current: 15kA
Insertion loss: < 0.2dB Breakdown voltage: 6V
SP016HDT
